Table Panel

The Table Panel lets you inspect signal values in a high-density grid with fast sorting, filtering, and scope-aware signal display.

Overview

The table panel is timeline-aware:

  • In live follow mode, it shows the latest values.
  • In paused mode (live or trace), it shows values at the timeline cursor.
  • During playback, values advance with the cursor.

Value lookup uses step-before behavior, so if no sample exists exactly at the cursor, the latest sample at or before the cursor is shown.

Columns

The current table columns are:

  • Signal: Display path for the signal, including trace/agent scope when needed
  • Value: Current value at the active timeline point
  • Row Actions: Per-row menu (remove signal)

Working with Signals

Add signals by dragging from the sidebar or using the panel query builder.

When a panel signal is portable (not bound to a specific producer/trace), the table can show multiple rows for that signal path, one per matching source.

Multi-Agent and Multi-Trace

The table supports mixed data sources:

  • Multiple live agents in one panel
  • Multiple trace files in one panel
  • Portable and scoped signal bindings in the same panel

When sources share signal paths, scope labels are included in signal display to avoid ambiguity.

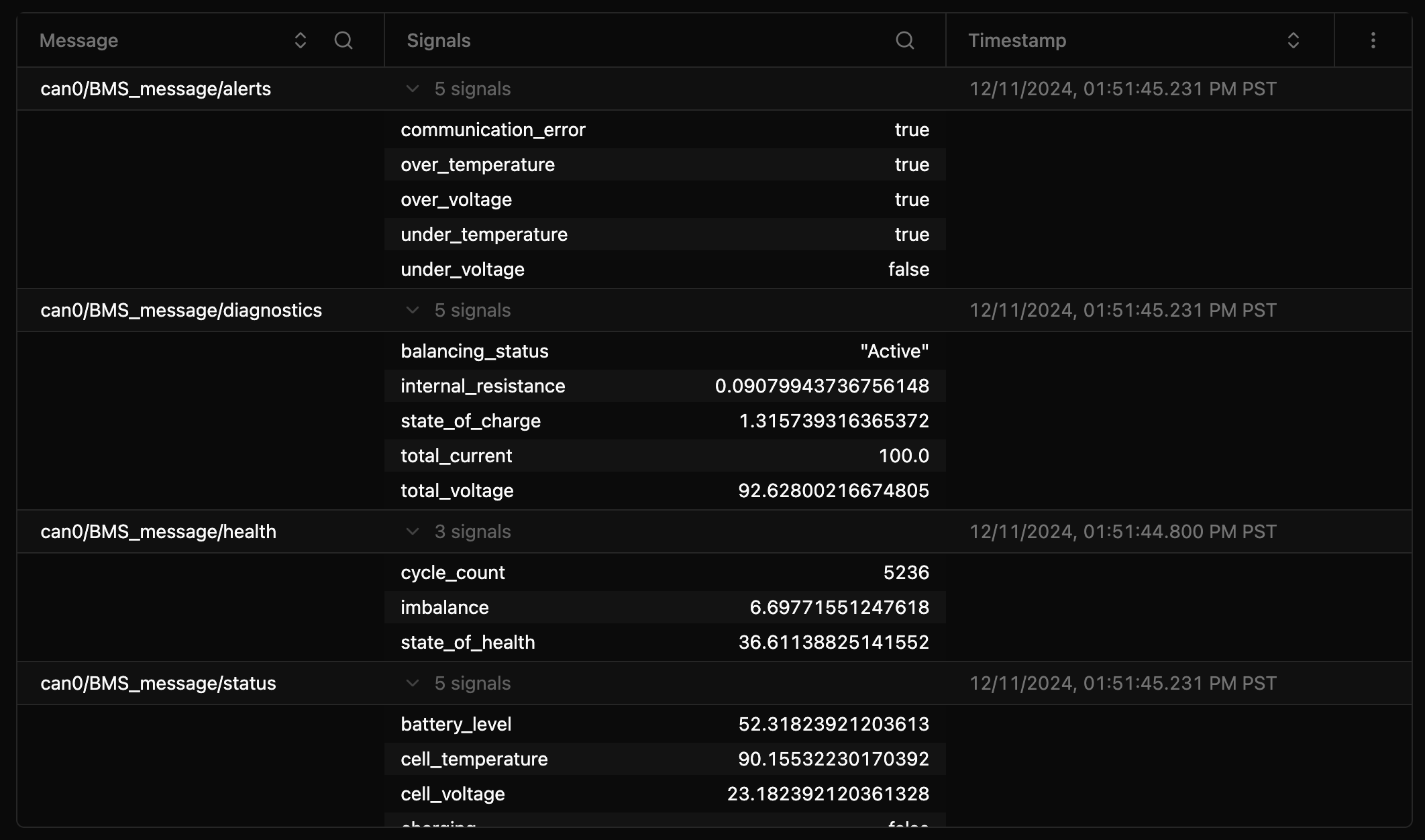

Multi-Agent Data

Signals from multiple agents/traces in one table.

Value Formatting

The table formats values using signal metadata:

  • Numeric values are shown with locale formatting
  • Objects are stringified for readability
  • Value-table mappings (enums) are applied automatically when available

Sorting

Click a column header to cycle sort direction:

  • Ascending
  • Descending
  • None

Sort state is reflected directly in the column header.

Filtering

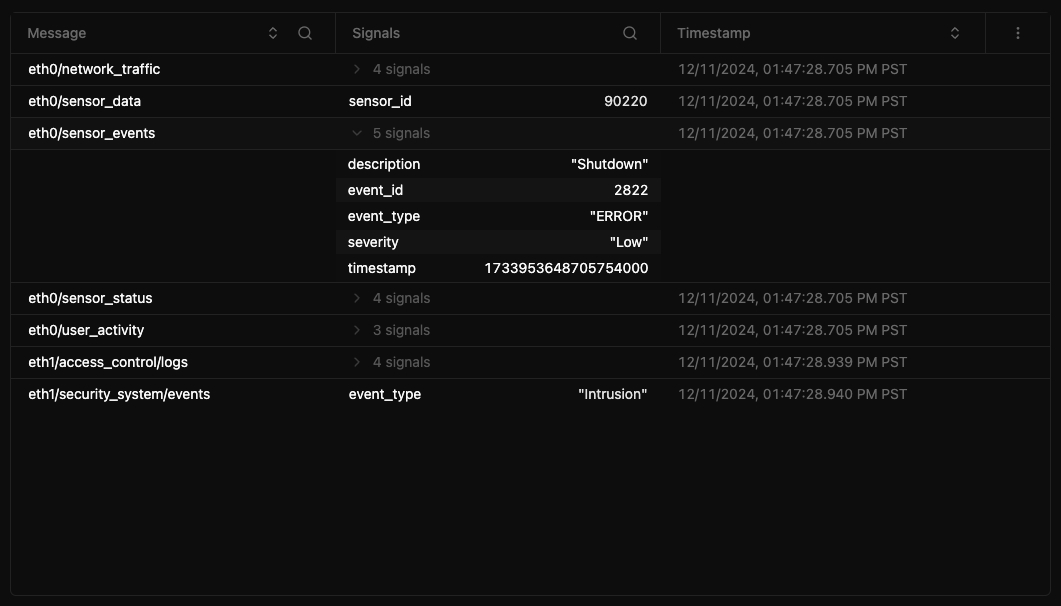

Table Panel Overview

Table panel with sorting, filtering, and row actions.

Use the search bar above the grid to filter rows quickly across signal display text and values.

Type to filter, or clear the input to restore all rows.

Quick Filter

Quick filter search bar for table-wide filtering.

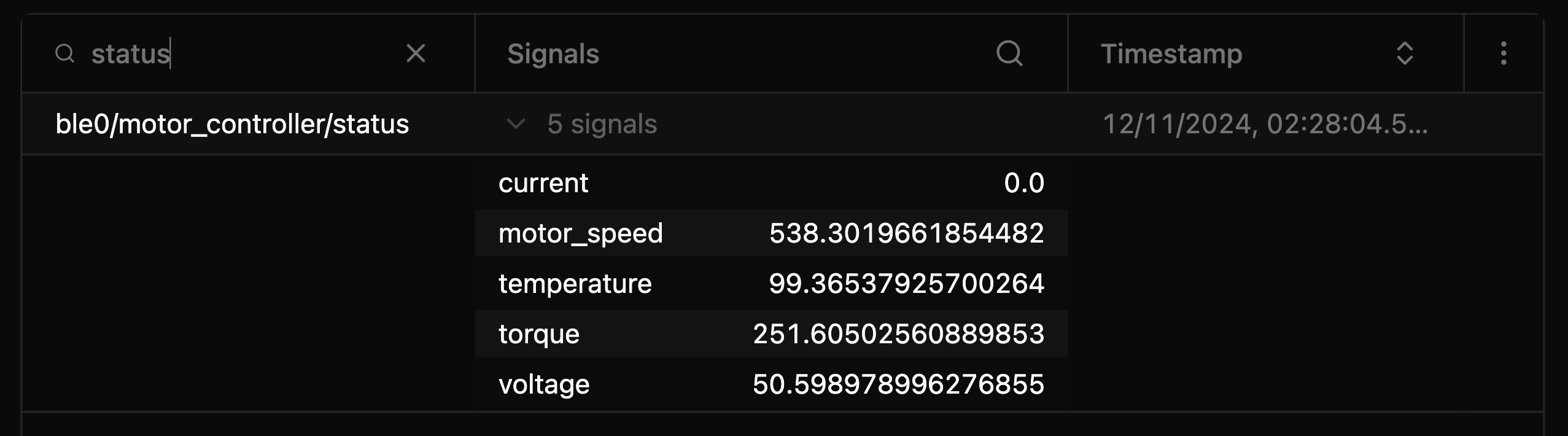

Column Filtering

Each sortable column also has a column-level filter menu.

This is useful for targeted filtering when broad search is too noisy.

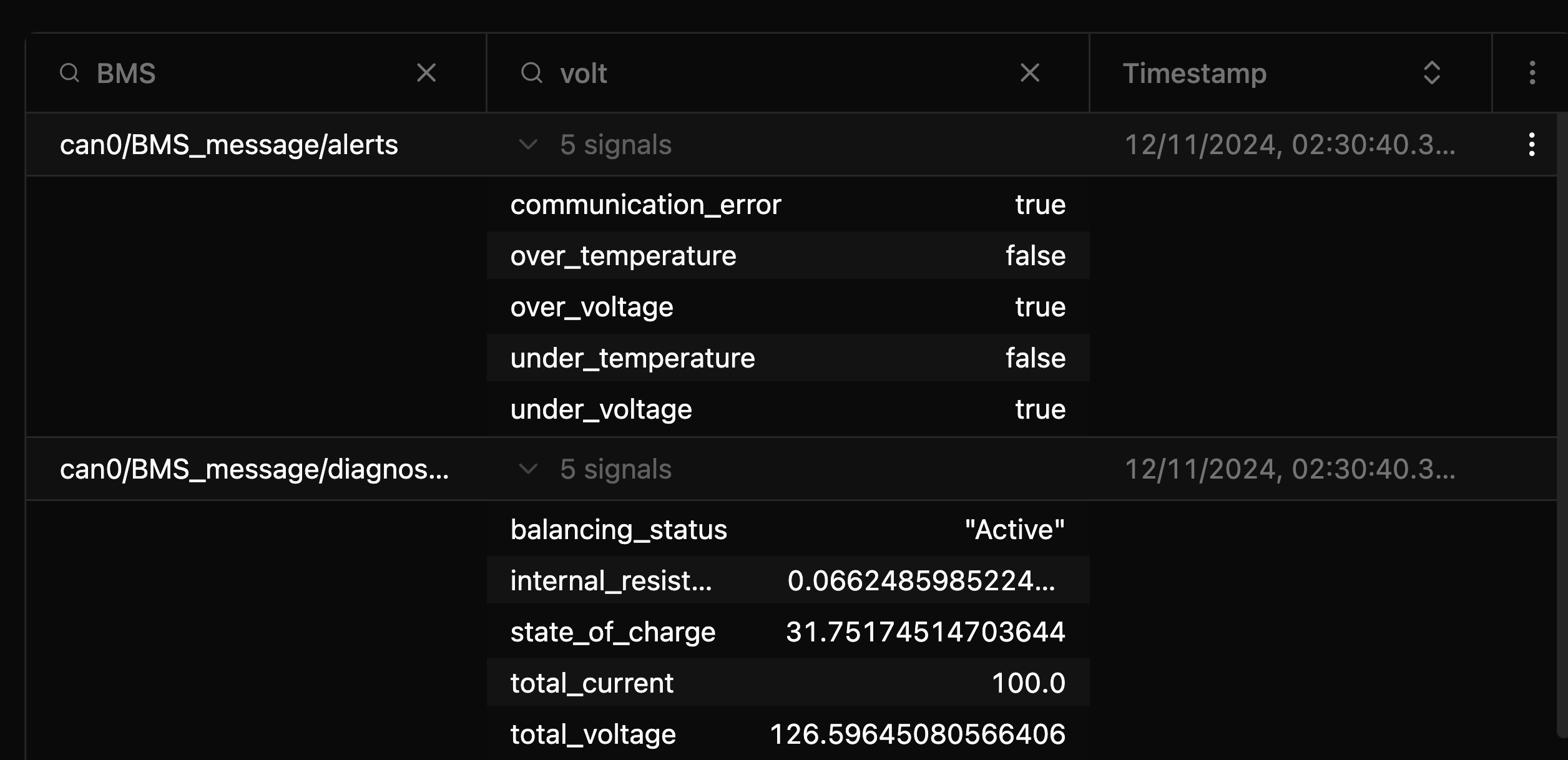

Column Filtering

Column-specific filters for targeted data selection.

Combining Filters

You can combine quick filter and column filters for tighter data selection.

Column Sizing

  • Drag a column divider to resize
  • Double-click a divider to auto-fit based on content

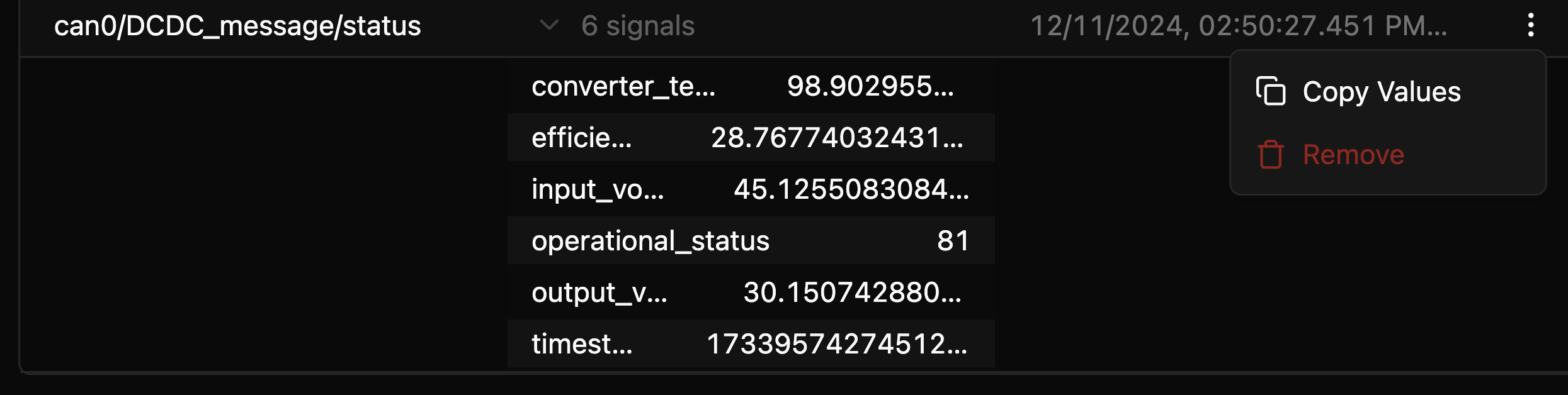

Row Actions

Each row has a menu with:

  • Remove: remove that signal binding from the panel
